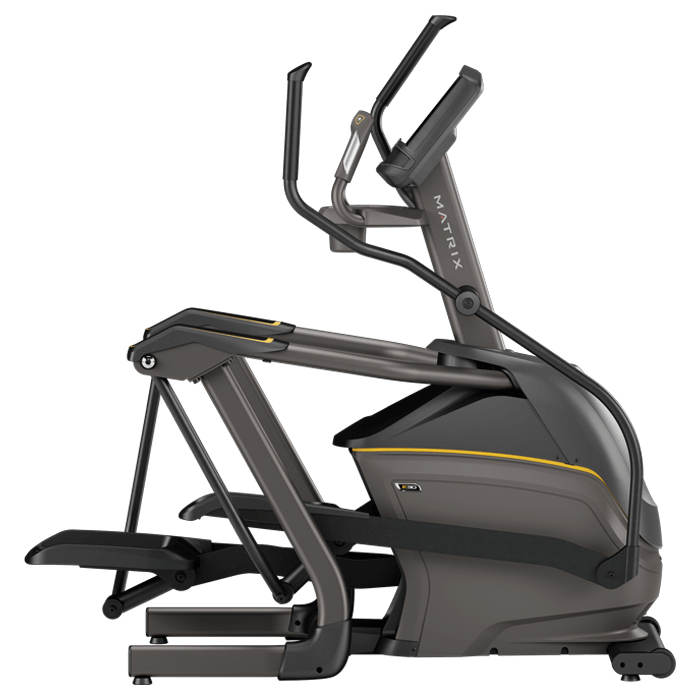

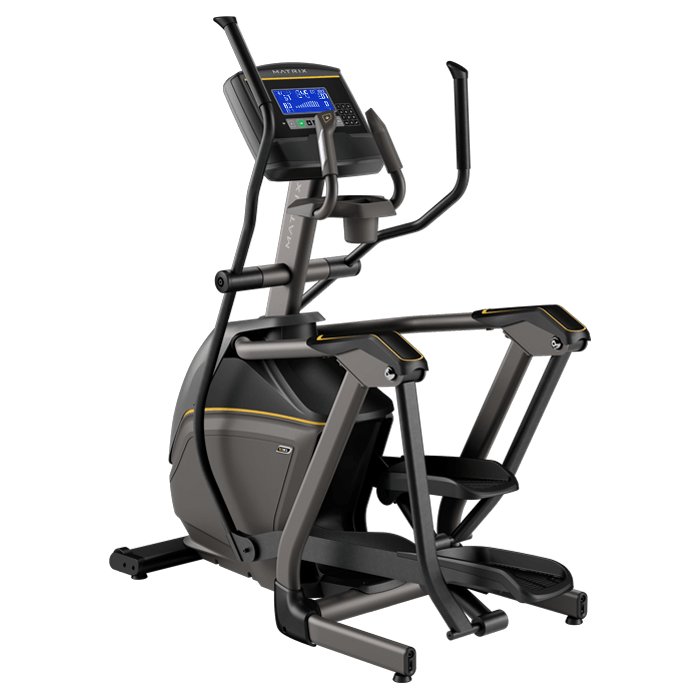

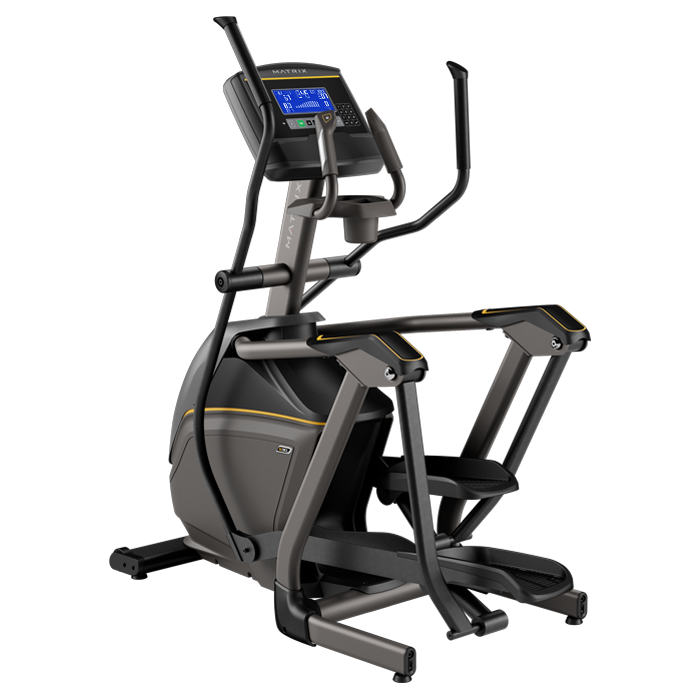

Created to fit your home like no other, the compact suspension elliptical delivers a harmony of design and natural movement for the most comfortable, smoothest elliptical experience in the industry. Matrix E30 Elliptical includes our exclusive Suspension Elliptical™ Technology.

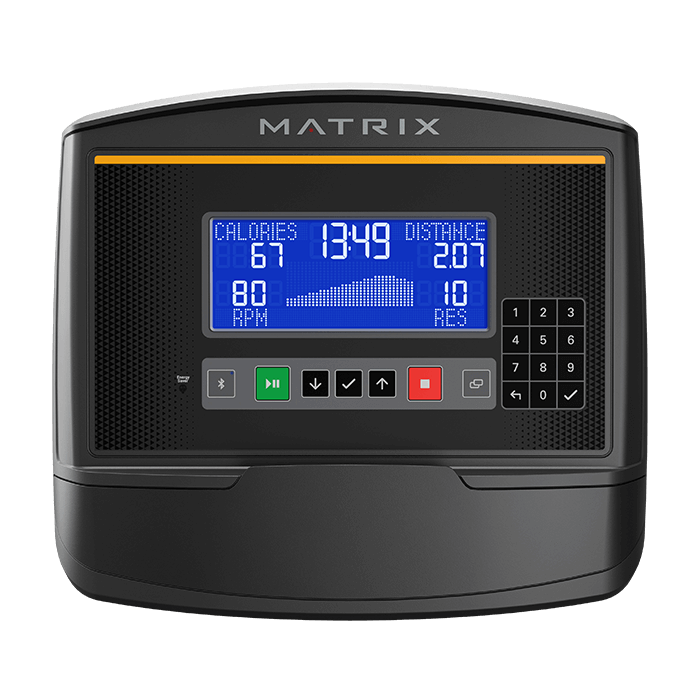

Matrix XR console features a clean, bright display that makes it easy for you to check your workout data at a glance, keeping you on track to reach and surpass your goals.
A Johnson Fitness exclusive, Sprint 8 can help you trim fat, tone muscles and boost energy. Some users experienced a 27% body-fat loss in just 8 weeks without changing their diets. These remarkable results are possible because Sprint 8 is a remarkable approach.
Watch Video
Exclusive wheel-free Suspension Elliptical Technology reduces noise and friction for long-lasting quality while providing a smooth, consistent feel through the ellipse.
Watch Video
Warranty | |
---|---|
Frame | Lifetime |
Brake | 5 Years |
Parts | 5 Years |
Console | Parts: 5 Years / Labor: 1 Year |
Labor | 2 Years |
Console | |
DISPLAY | 8.5” extra-wide blue LCD (22 cm) |
WIFI ENABLED | No |
BLUETOOTH ENABLED | Connect to popular training and coaching apps |
USB PORT | Internal USB port for software updates |
CONSOLE APPS | No |
PASSPORT READY | No |
VIAFIT CONNECTIVITY | No |
CONSOLE EXTRAS | Integrated reading rack, energy saver mode |
WORKOUTS | 5 total — manual, intervals, fat burn, target heart rate, Sprint 8 |
DISPLAY FEEDBACK | Time elapsed, time remaining, miles / kilometers, RPM, pace, heart rate, calories, METS, speed, resistance |
Specifications | |
Frame Type | Suspension Elliptical Trainer |
Handlebar Design | Dual action, stationary with resistance toggles and heart rate grips |
Flywheel Weight | 10.5 kg / 23.1 lbs |
Stride Length | 51 cm / 20” |
Step on Height | 23 cm / 9.1” |
Pedal Spacing | 6.35 cm / 2.5” |
Pedal Type | Oversized |
Resistance System | ECB magnetic braking system |
Resistance Range | 20 levels, electronically adjustable |
Extras | Water bottle holder, accessory tray |
Power Incline | N/A |
Power Requirements | 120 V AC power, 15 A circuit (voltage may vary outside the USA) |
Assembled Weight | 126 kg / 278 lbs. |
Active Footprint | 175 x 73 x 172 cm / 68.9” x 29” x 68” |
Assembled Dimensions (L x W x H) | 148 x 73 x 166 cm / 58” x 29” x 65” |
Max User Weight (lbs) | 147 kg / 325 lbs. |
