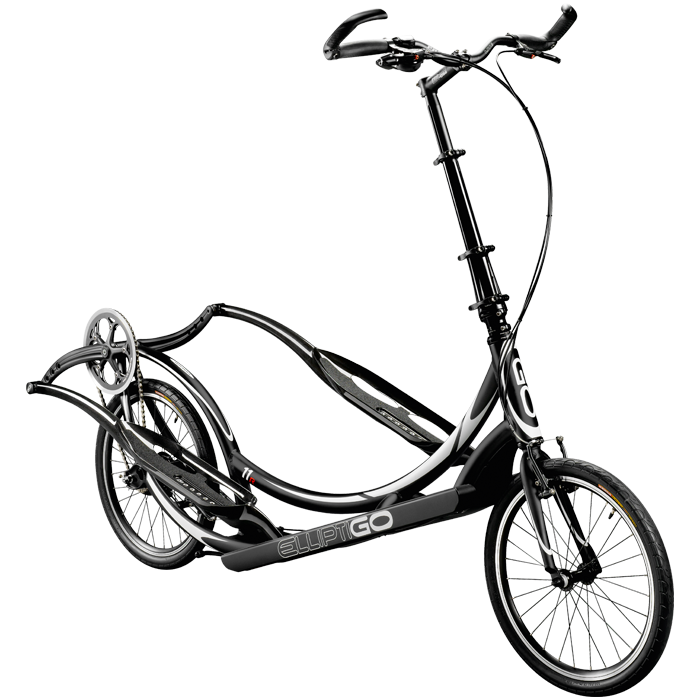

ElliptiGO 11R
Designed specifically for racing and endurance events, the high-performance 11R has carbon-fiber drive arms and a Shimano eleven-speed hub. Compared to the eight-speed ElliptiGO 8C, the 11R gives riders an additional low gear to take on the steepest of hills and two more high gears to facilitate applying power during high-speed descents. At 39.4 pounds, the 11R is the lightest ElliptiGO model available.
It's the first ElliptiGO designed specifically for racing and ultra-endurance events. With carbon-fiber drive arms and a Shimano eleven-speed hub, the 11R is the lightest and most capable elliptical bike in the world. Compared to the ElliptiGO 8C, the 11R gives riders another low gear to take on the steepest hills and two more high gears to enable power transfer during high-speed descents.
About the ElliptiGO
Regardless of the moniker, there are four fundamental attributes of an elliptical bicycle:
- It is used outdoors
- It has two wheels
- It is propelled by an elliptical motion that emulates running
- It performs similarly to a conventional road bike in terms of speed and handling
Elliptical bikes enable people to take low-impact weight-bearing exercise outdoors. Studies show that people tend to exercise longer, more intensely, and more consistently when they are able to do so outdoors. As a result, elliptical bikes provide people with a great way to get fit and stay active for years to come.
11-speed Shimano Archer Hub.
11-Speed Shimano hub enables 25+ mph sprints and the gearing to climb the steepest hills.
Carbon Fiber Arms.
Carbon fiber driver arms reduce weight and smooth out the ride.
Adjustable Stride Length.
The patented adjustable stride length enables riders of all sizes to share the same ElliptiGO.

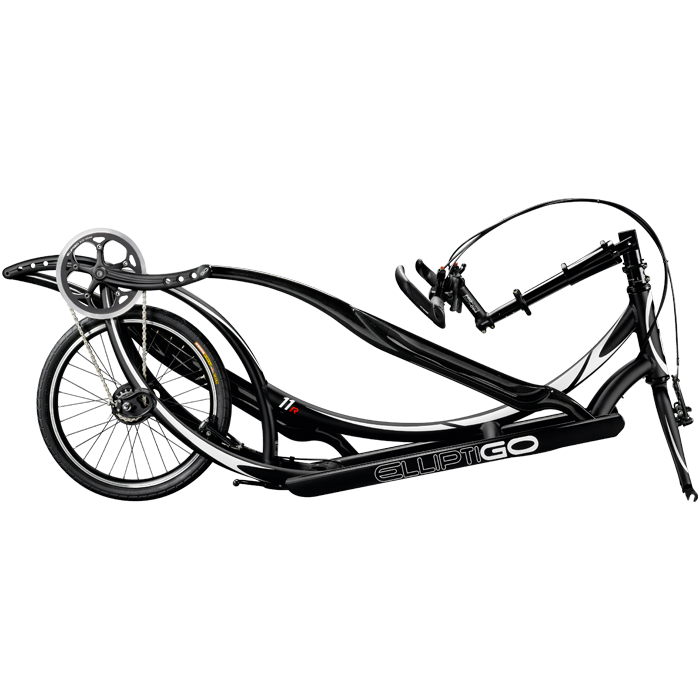

Folding Frame.
Folding steering column facilitates transportation and storage.
Warranty
| Frame | 5 Years |
| Fork, Drive Arms, Crank Arms, Steering Column | 2 Years |
| All other components, Paint, Decals | 1 Year |
SPECIFICATIONS
| OVERVIEW | |
|---|---|
| Gears | 11 |
| Colors | Matte Black with White Striping |
| Transport/Storage | Foldable Steering Extender Removable Front Wheel |
| Grips | Ergon GC3 multi-position ergonomic grips with integral bar ends |
| Weight | 39.4 lbs (17.9 kg) |
| Climbing Ability | Steep hills (up to 20-30% grade) |
| Workout Resistance Selection | 11 different levels of resistance, 409% total resistance range, 14 % difference between levels |
| SYSTEM SPECIFICATIONS | |
| Wheelbase | 54" (137 cm) |
| Total Length | 75" (190.5 cm) |
| Weight | 39.4 lbs (17.9 kg) |
| Operating Height | 50-58" (127-147 cm) |
| Storing Height (with front wheel) | 35" (89 cm) |
| Storing Height (no front wheel) | 27" (70 cm) |
| Stride Length | 16-25" (41-64 cm) |
| Crank Length | 6.75 - 10.5" (171 - 267mm) |
| Gears/Speeds | 11 |
| Total Gear Range | 409% |
| Avg Gear Step | 11% |
| Gear Ratio Range | .527 - 2.153 |
| Gear Inch Range | 29 - 118 |
| Gain Ratio Range | 1.4 - 5.6 |
| COMPONENTS | |
| Frame | 7005-T6 Aluminum |
| Fork | 20" butted chro-moly with 1.5"" seerer tube |
| Propulsion System | Patented Elliptidrive technology |
| Track System | Integral with modular inserts (patent pending) |
| Drive arms | Multi-modulus carbon-fiber monococque |
| Cranks | Custom forged aluminum with Variable Stride Length (VSL) technology (patent pending) |
| Chainring | 52-tooth, 130 BCD, 6061-T6 aluminum |
| Sprocket | 18-tooth |
| Hub | Shimano Alfine SG-S700, 11-speed internally geared hub |
| Bottom Bracket | Isis drive, sealed bearings |
| Steering Column | Folding and telescopically adjustable with roto-lock safety technology |
| Steering Extender | forged aluminum with anti-rotation indexing |
| Headset | 1.5' threadless |
| Stem | Forged aluminum, 120mm x 7 deg. |
| Handlebar | Aluminum MTB riser bar, 50 mm rise, 670mm wide |
| Grips | Ergon GC3 multi-position ergonomic grips with integral bar ends |
| Shifter | Shimano Alfine SL-S700 trigger shifter |
| Brake Levers | Avid Speed Dial 7, two finger levers |
| Front and Rear Brakes | Avid Single Digit 7 linear pull rim brakes |
| Front Wheel | 20" aluminum aero profile rim, 28-spoke |
| Rear Wheel | 20" aluminum aero profile rim, 32-spoke |
| Tires | Kenda Kwest, 20" x 1.5" 60TPI, 100-psi |
| Kickstand | Dual leg, forged aluminum kickstand |
| PERFORMANCE | |
| Cruising Speed (flat terrain) | 15 mph (24 kph) |
| Sprinting Speed (flat terrain) | 23+ mph (37+ kph) |
| Recommended Riding Terrain | Flat and hilly terrain |
| Climbing Ability | Can climb steep hills up to 20-30% grade |
| Workout Resistance Selection | 11 different levels of resistance, 409% total resistance range, 14% difference between levels |
