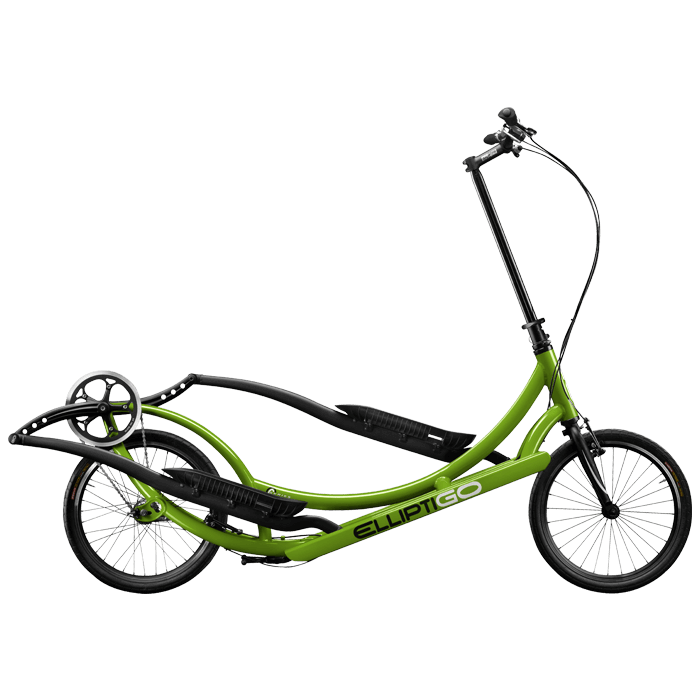

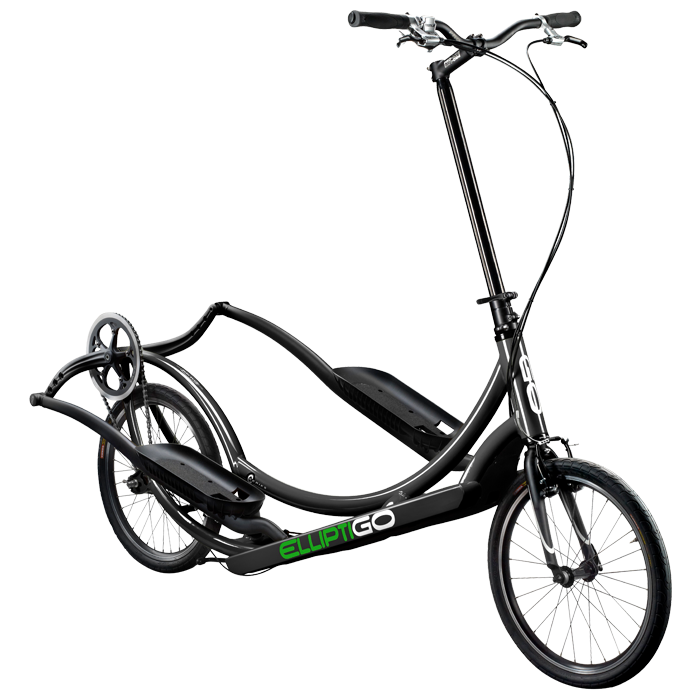

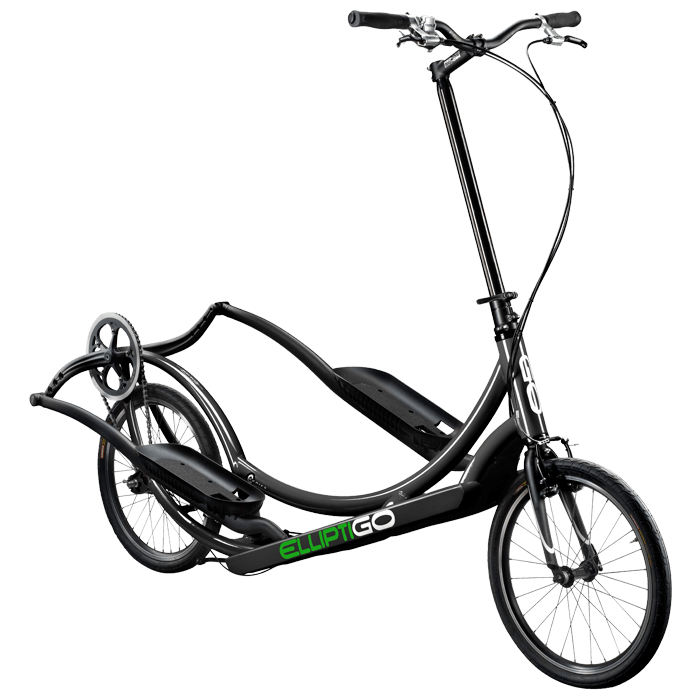

ElliptiGO 3C
With a significantly lower price point, the ElliptiGO 3C will expand the elliptical biking category and introduce more customers to the fun and exhilaration of the ElliptiGO experience.
The ElliptiGO 3C is designed for any outdoor fitness enthusiast who will ride on relatively flat terrain and only needs a basic range of workout resistance levels. The ElliptiGO 3C will also be a better fit for a more pricesensitive or cost-conscious consumer.
ElliptiGO 3C riders can cruise comfortably on the flats at speeds of 12-15 mph or increase the intensity of a workout by pushing to a max speed of 20-25mph. The 3-speed gear range also enables 3C riders to climb some hills (up to ~5% grade inclines)—making it a great workout tool in most environments.
About the ElliptiGO
Regardless of the moniker, there are four fundamental attributes of an elliptical bicycle:
- It is used outdoors
- It has two wheels
- It is propelled by an elliptical motion that emulates running
- It performs similarly to a conventional road bike in terms of speed and handling
Elliptical bikes enable people to take low-impact weight-bearing exercise outdoors. Studies show that people tend to exercise longer, more intensely, and more consistently when they are able to do so outdoors. As a result, elliptical bikes provide people with a great way to get fit and stay active for years to come.
3-speed Sturmey Archer Hub.
3-speed Sturmey Archer hub enables sprints up to 25 mph and gearing to handle mild hills.

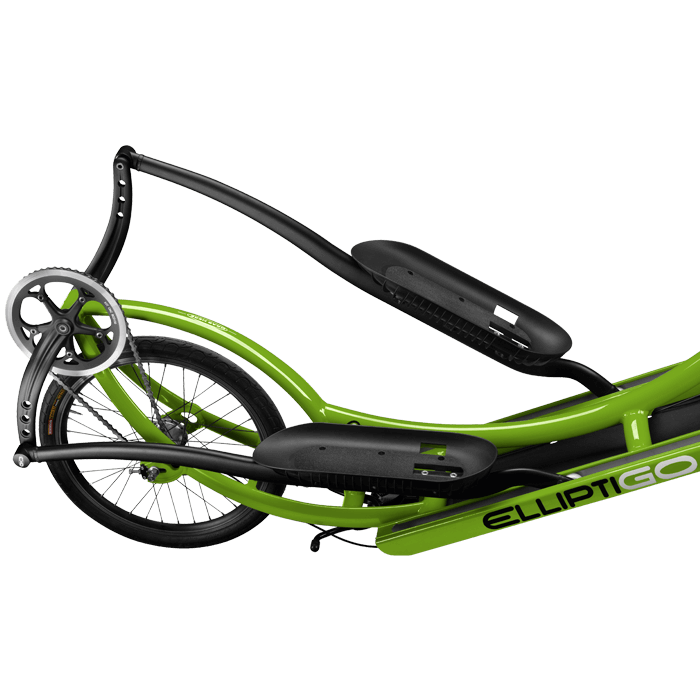

Ellipti-Drive System.
Patented Ellipti-drive system provides for a comfortable, fun and low-impact ride.
Adjustable Stride Length.
Patented adjustable stride length enables riders of all sizes to share the same ElliptiGO.

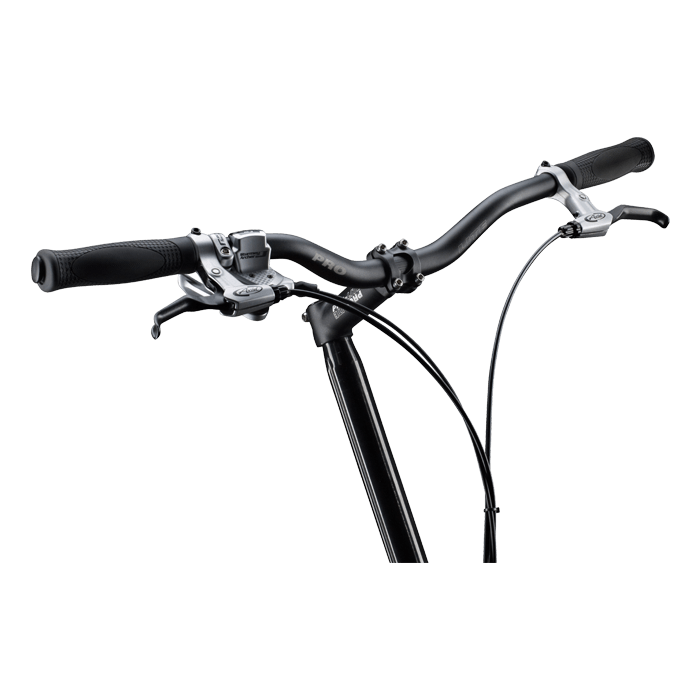

Just Like a Bike
Standard bicycle brakes, shifter, and grips provide a familiar set of controls.
Warranty
| Frame | 5 Years |
| Fork, Drive Arms, Crank Arms, Steering Column | 2 Years |
| All other components, Paint, Decals | 1 Year |
SPECIFICATIONS
| GENERAL | |
|---|---|
| Wheelbase | 54" (137cm) |
| Operating Height | 50 - 57" (127 - 147 cm) |
| Cruising Speed | 15 mph (24 kph) |
| Total Length | 75" (190.5 cm) |
| Stride Length | 16 - 25" (41 - 64 cm) |
| Weight | 42 lbs. |
| Sprinting Speed | 23+ mph (37+ kph) |
| COMPONENTS | |
| Frame | 7005-T6 aluminum |
| Propulsion System | Patented Elliptidrive technology |
| Headset | 1.5" threadless |
| Steering Column | Removable and telescopically adjustable with height index locking |
| Stem | Forged aluminum, 120mm x 7 deg. |
| Front and Rear Brakes | Linear pull rim brakes |
| Grips | Velo ergonomic grips |
| Shifter | Sturmey Archer S30 trigger shifter |
| Front Wheel | 20" aluminum aero profile rim, 28-spoke, radial |
| Chainring | 52- tooth, 130 BCD, 6061-T6 aluminum |
| Sprocket | Shimano 13-tooth |
| Track System | Integral with modular inserts (pat. pending) |
| Drive arms | Aluminum with composite nylon foot platform |
| Fork | 20" double butted chro-moly with 1.5" seerer tube |
| Steering Extender | butted chro-moly steel with anti rotation indexing |
| Cranks | Custom Forged 7075 T-6 aluminum with Variable Stride Length (VSL) Technology (pat. pending) |
| Brake Levers | Avid FR5, two finger levers |
| Handlebar | Aluminum MTB riser, 50mm rise, 670mm wide |
| Hub | Sturmey Archer R-SRF 3, 3 speed hub internally geared hub |
| Rear Wheel | 20" aluminum aero profile rim, 32-spoke, left- 0X, right -2X |
| Tires | 20" x 1.5" 60TPI, 100-psi |
| Bottom Bracket | Isis Drive |
