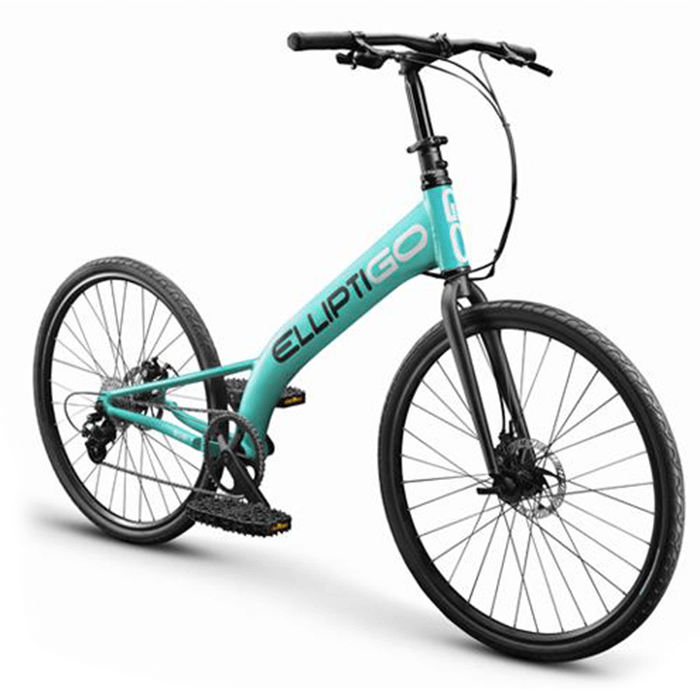

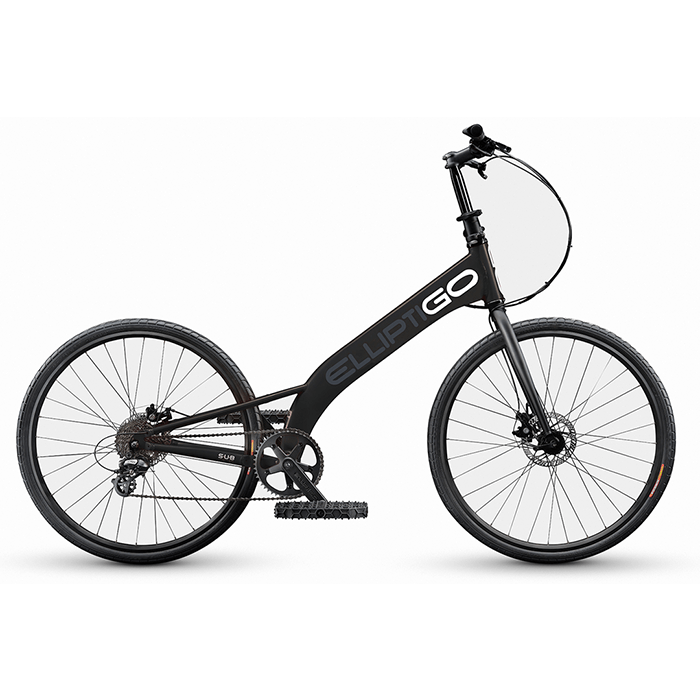

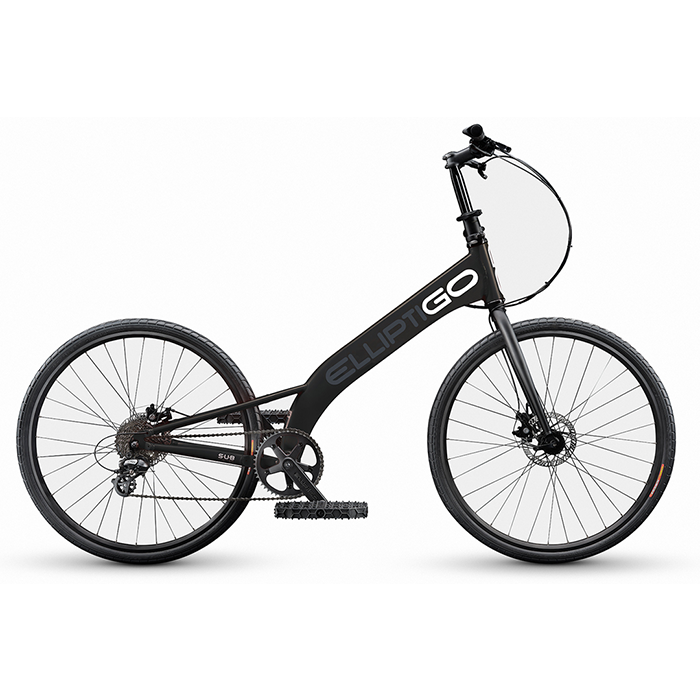

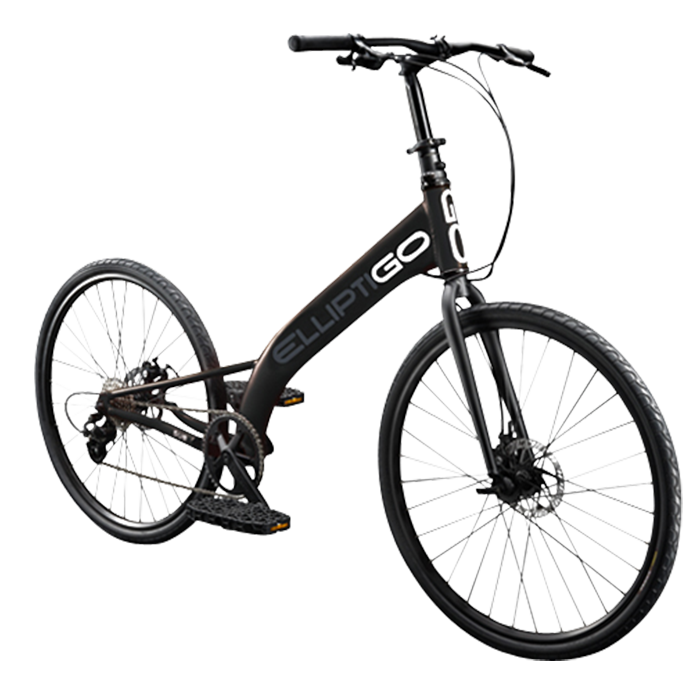

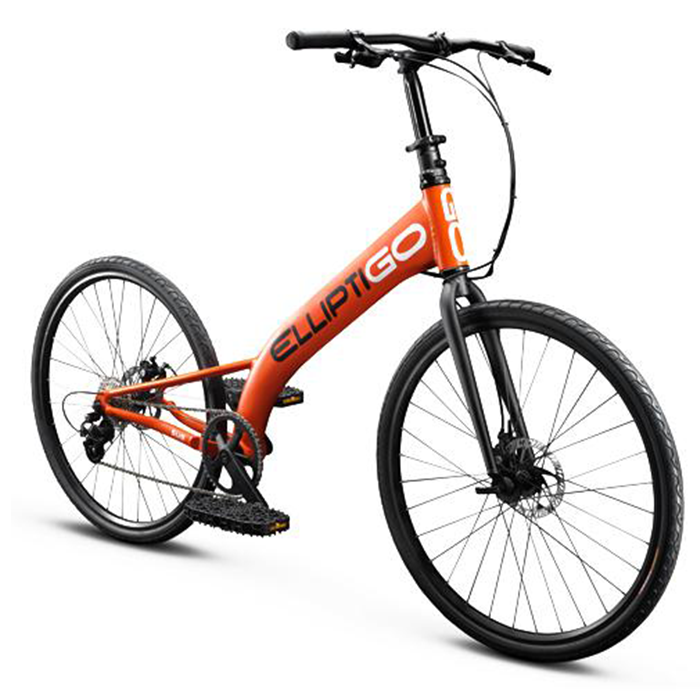

ROAD PERFORMANCE REDEFINED. Freedom has arrived in the slick and stylish Road Stand Up Bike. The ElliptiGO RSUB is the premier road product in the SUB lineup and may be the fastest stand up bike on the road today. Full-size 700c tires and disc brakes provide a secure, steady and powerful ride, giving you the confidence to cruise or compete. Regardless of the path you choose, you’ll be riding in comfort and torching calories while you reinvent life on two wheels!
THE NEXT CATEGORY OF RECREATION AND FITNESS. Although the ElliptiGO story began with elliptical bikes, we recognized the potential for a stand up bike concept early on. While we were hesitant at first, our team agreed that creating the SUB achieved our mission to deliver a fun, comfortable and effective workout experience that inspires people and improves their lives. The original SUB was launched in 2018, and the MSUB and RSUB were introduced in 2019. These bikes leverage a circular pedaling motion but without a traditional bike’s painful saddle, uncomfortable riding position, and inefficient workout. This product family continues to draw new members to our inclusive community of riders all around the world.
SPECIFICATIONS | |
---|---|
Wheelbase | 46.5″ (118cm) |
Total Length | 74.4″ (189cm) |
Weight | 31.4 lbs (14.2 kg) |
Operating Height | 43.3-49.6″ (110-126cm) |
Storing Height (with front wheel) | 43.3″ (110 cm) with steering extender |
Storing Height (no front wheel) | 43.3″ (110 cm) with steering extender |
Crank Length | 5.9” (150mm) |
Gears/Speeds | 8 |
Total Gear Range | 309% |
Avg Gear Step | 18% |
Gear Ratio Range | 1.4 – 4.4 |
Gear Inch Range | 39 – 121 |
Stride Length | 11.8″ (30 cm) |
Stride Height | 11.8” (30 cm) |
COMPONENTS | |
Front and Rear Brakes | Mechanical Disk brakes |
Grips | Clamp on anti-rotation, with Ergonomic shelf |
Cranks | Custom forged aluminum |
Frame | 6061-T6 Aluminum |
Fork | 700C butted chro-moly with 1.5” steerer |
Brake Levers | Two finger levers |
Propulsion System | Circular Drive |
Drive Arms | N/A |
Track System | N/A |
Chainring | 48-tooth, 130 BCD, 6061 – T6 aluminum |
Cassette | 8-speed 11-34 tooth range |
Bottom Bracket | Oversized M48, isis spline, sealed bearings |
Sprocket | N/A – Uses Cassette |
Hub | Alloy freewheel hub |
Steering Column | Adjustable height index locking |
Steering Extender | Chro-moly steel, anti-rotation indexing |
Headset | 1.5” threadless |
Kickstand | Single leg, forged aluminum |
Tires | Kenda Kwest, 700 x 40C 60TPI, 85-psi |
Handlebar | Alu. MTB Flat bar, 31.8mm dia x 720mm wide |
Stem | Forged aluminum, 31.8mm dia bar, 80mm x 7 deg |
Shifter | 8-speed trigger |
Front Wheel | 700C aluminum, 32-spoke |
Rear Wheel | 700C aluminum, 32-spoke |
Performance | |
Climbing Activity | Climb steep hills up to 20-30% grade |
Recommended Riding Terrain | Flat & Hilly Terrain |
Workout Resistance Selection | 8 different levels of resistance. 309% total resistance range. 18% difference between levels |
